Description
Proximity only reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)Technical data
Weight |
0.150kg |
Cable length |
3 meters |
Supply voltage |
12-24 V DC |
Operation temperature |
-40°C to +50°C |
Mounting |
Mullion |
Dimensions (W x H x D) |
36mm x 108mm x 13mm |
Environment |
Indoor & Outdoor |
Housing protection (EN 60529) |
IP67 |
Documentation |
Data sheet (en)
Description
Proximity only panel mount reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)Technical data
Weight |
0.065kg |
Operation temperature |
-40°C to +50°C |
Mounting |
Panel |
Dimensions (W x H x D) |
63mm x 58mm x 23mm |
Environment |
Indoor & Outdoor |
Housing protection (EN 60529) |
IP67 |
Documentation |
Description
Proximity only reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)Technical data
Weight |
0.142kg |
Supply voltage |
12-24 V DC |
Operation temperature |
-40°C to +50°C |
Mounting |
Surface/Flush |
Dimensions (W x H x D) |
100mm x 110mm x 35mm |
Environment |
Indoor & Outdoor |
Housing protection (EN 60529) |
IP67 |
Documentation |
Description

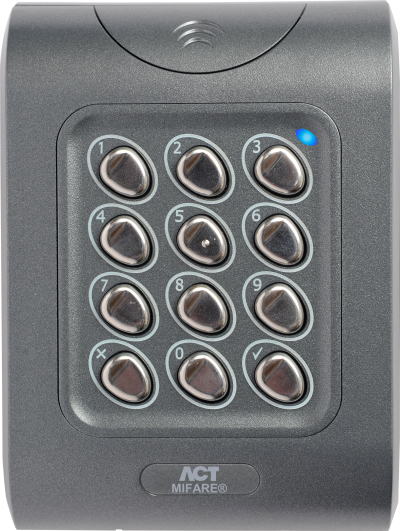

Combined proximity and PIN reader, reads sector data from ACT MIFARE cards/fobs also can read the serial number from any MIFARE Classic card/fob or data from any sector (read key required)Technical data
Weight |
0.155kg |
Supply voltage |
12-24 V DC |
Operation temperature |
-40°C to +50°C |
Installation |
Surface/Flush |
Dimensions (W x H x D) |
100mm x 110mm x 35mm |
Environment |
Indoor & Outdoor |
Housing protection (EN 60529) |
IP67 |
Documentation |
Description
The ACTpro USB reader is a plug and play desktop reader for ACt Enterprise software. The USB readers support ACT RFID, HID, MIFARE Classic and DESFire EV1 technologies.
Description
The ACT 433RX Receiver connects to any 37-Bit Wiegand or Clock & Data access control system and operates with the ACT 433TX and ACT 433TXprox long range transmitters.
Documentation |
